GMWD 3D Hip Abductor Machine | Iron Clinic Review

Introduction

GMWD has been putting out plate-loaded specialty machines for the home gym market for a few years now, and their 3D hip abductor is one of the more interesting pieces they’ve built. It is a seated, plate-loaded hip abduction machine, and the thing that separates it from the standard commercial version you’ve used at a public gym is the motion path. Instead of your knees swinging straight out on a flat track, your legs move back and out at the same time, which GMWD calls a “3D” path.

I had this machine in my gym for about three months before writing this review. That is long enough to use it seriously, put real weight on it, and form an honest opinion about whether it earns its keep. The short version: it does what it promises, and it does it well. The longer version is that whether it belongs in your gym depends entirely on where you are in building your setup and how seriously you take your lower body training.

First Look

The machine arrives in a few boxes. The parts are distinct enough in shape that you can tell what goes where without having to read every line of the manual first. That is not always true of equipment at this price point, and it was a good first sign.

Once assembled, the thing has a real presence. It is wide, it is tall, and it sits in your gym the way a piece of dedicated commercial equipment would. The frame feels solid when you push on it, no flex, no rattle. The powder coat finish looks clean. Really clean. And the seat is wide and supportive, backed by a tall back pad that actually gives you something to brace against. The thigh pads are large and angled to match the movement arc.

The seat belt is a detail worth calling out early. It is wide, it does not cut into your hips, and it wraps over you in a way that actually pins your pelvis down rather than just sitting loosely across your lap. The handles are well positioned too, angled so your shoulders and wrists stay relaxed rather than forcing you into some awkward shrugged grip.

Standing back after assembly, the honest first reaction is: this takes up a lot of room. That realization hits harder once it is sitting in your space and you are measuring what it displaced or blocked off.

Build Quality

After three months of regular use, the machine has not given me any reason to doubt it. No wobble has developed, no looseness in the joints, no clicks or squeaks that were not there from the start. The arms still track smoothly through the full range of motion, and the frame feels as solid now as it did on day one.

The thigh pads deserve a specific mention here. They are thick and firm without being rock solid. The foam does not compress down to nothing before the movement starts, which matters because squishy pads bleed off tension at the bottom of the rep. With these, you engage right away and keep tension through the whole range. They are not the most premium upholstery GMWD has put on a piece of equipment, but they do the job correctly.

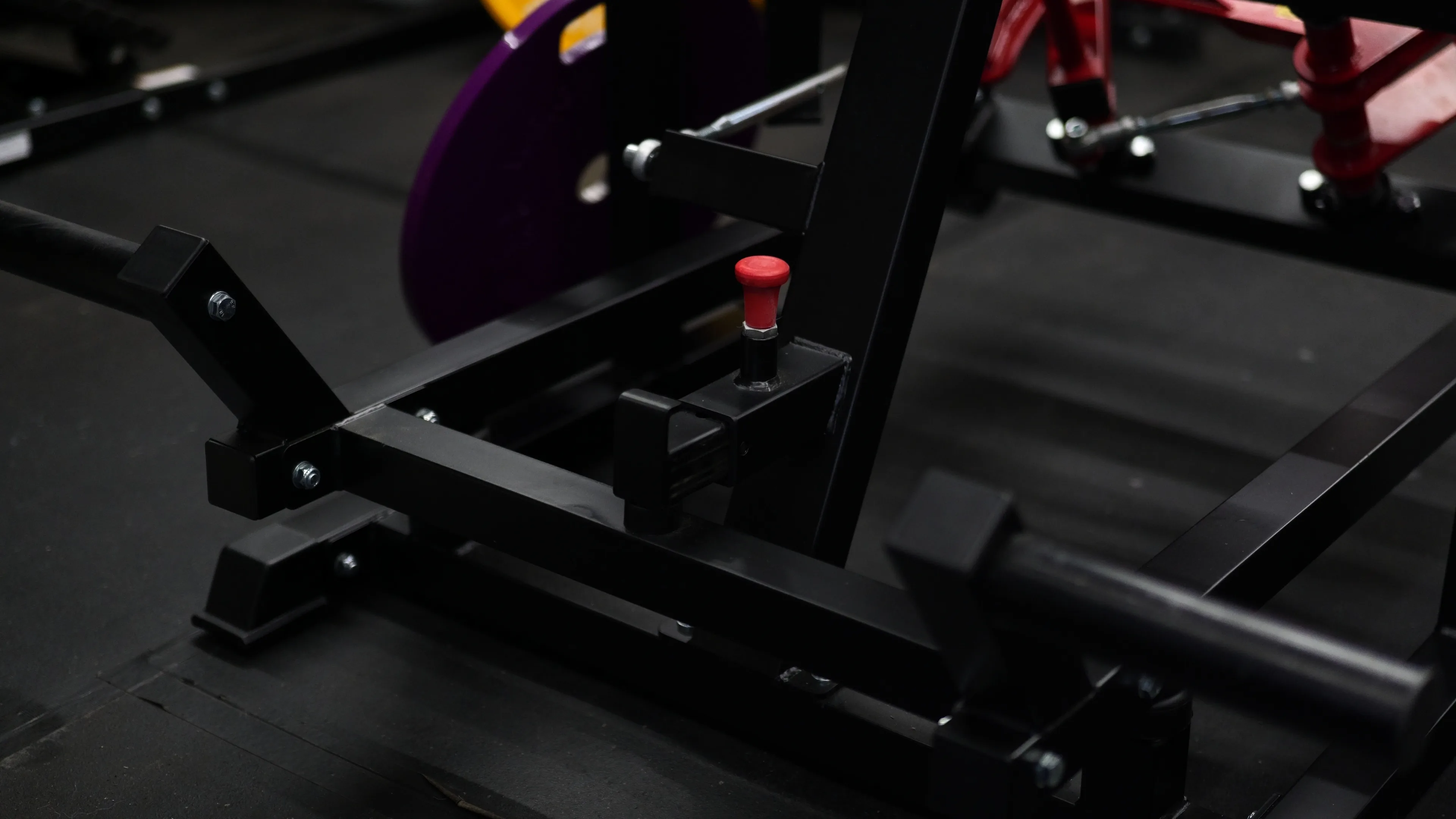

The pop-pin system on the foot pedals is a smart detail. It lets you swing the pedals open to get in and out of the machine cleanly, then lock them back into place without fussing around. On a machine where getting into position is part of the experience every single set, that matters.

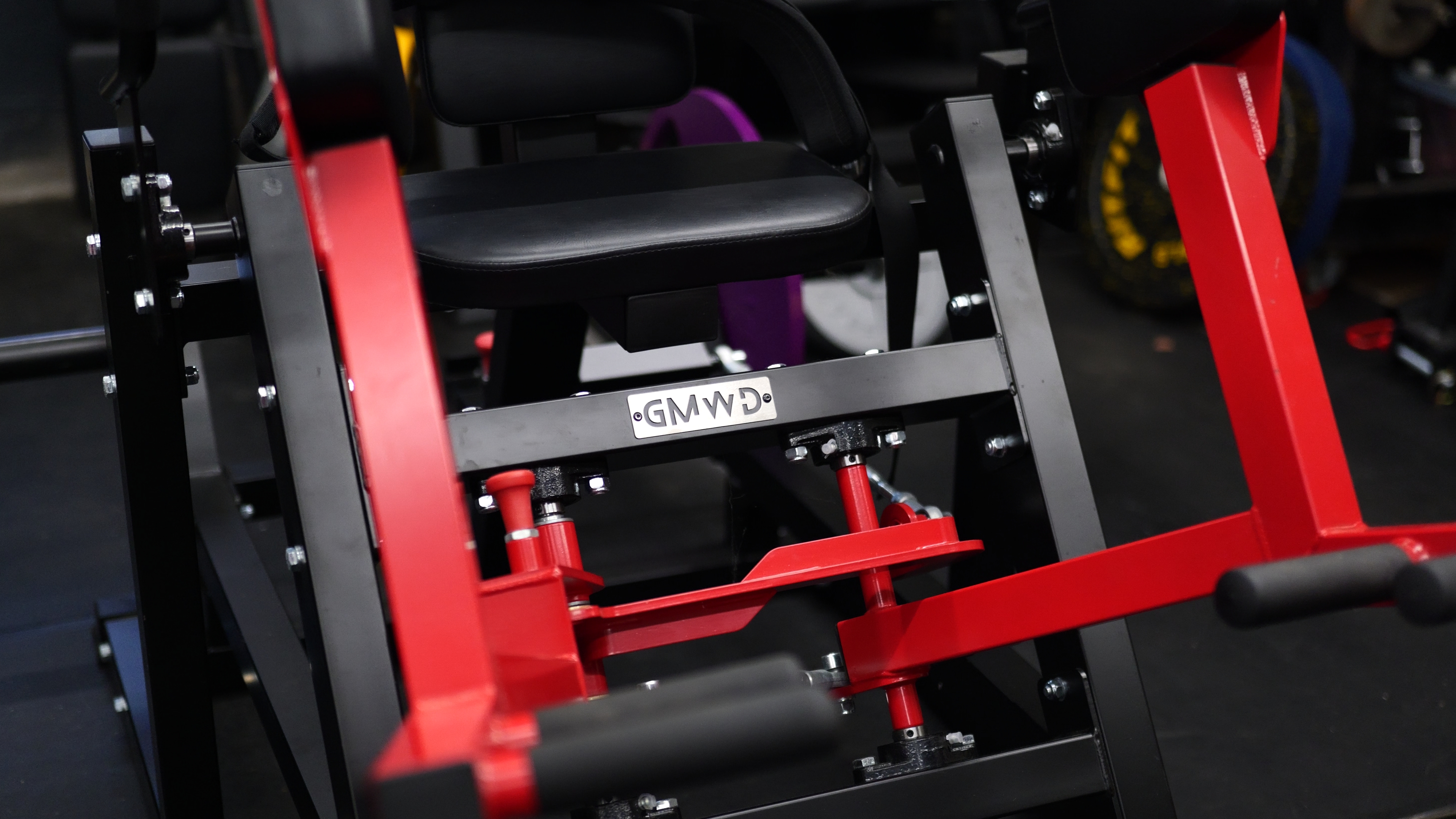

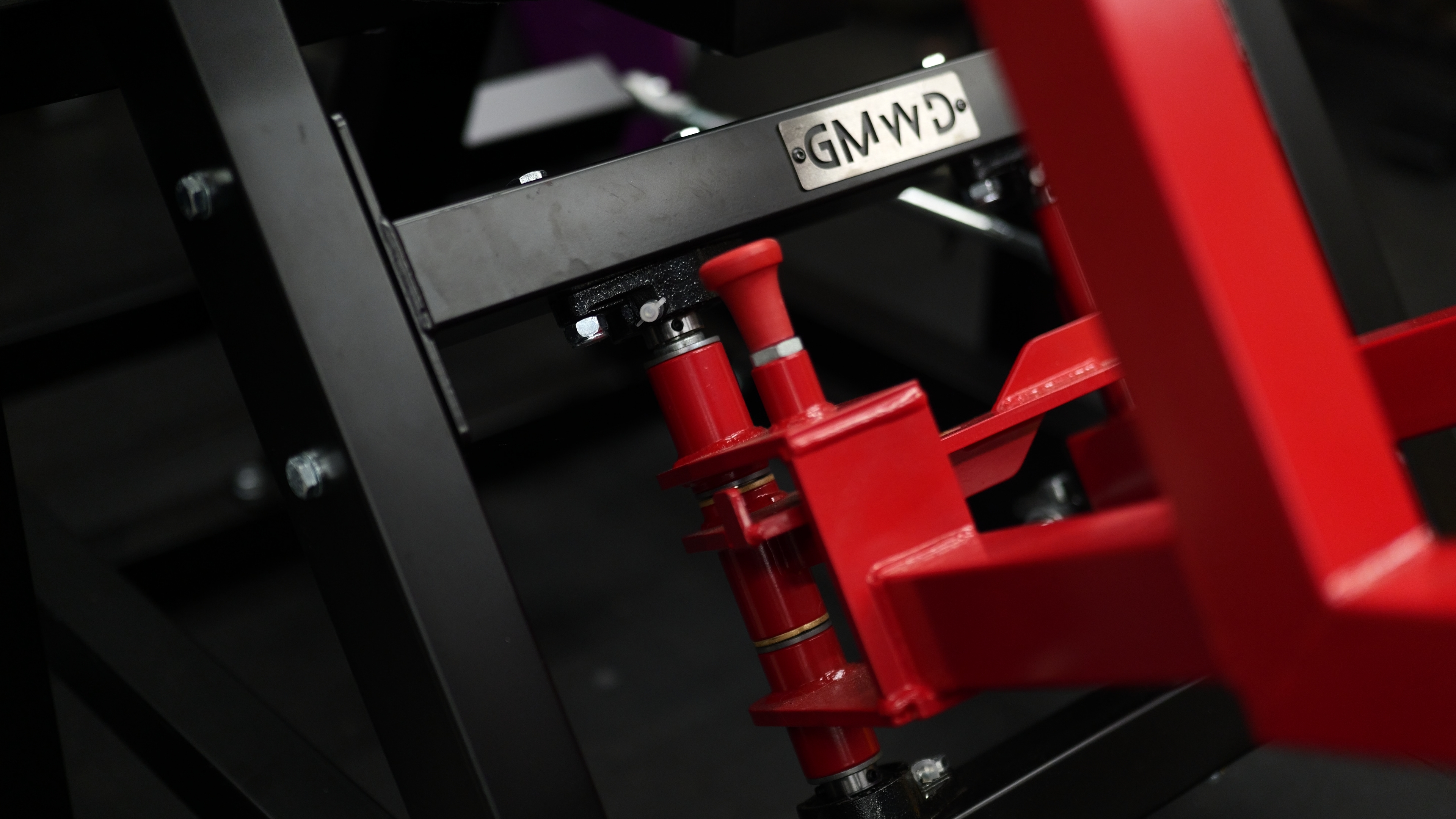

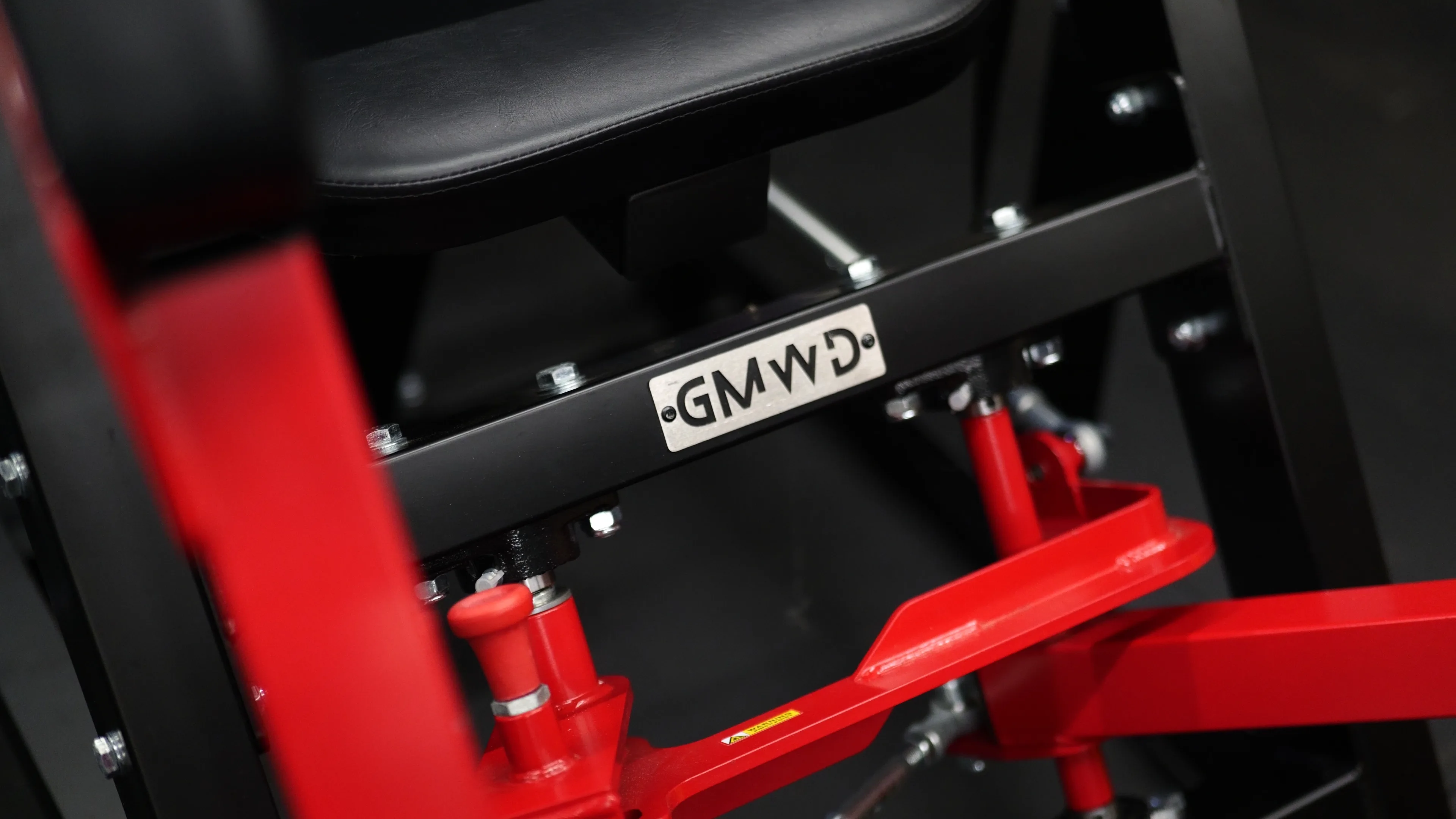

The linkage that creates the 3D motion path looks complicated at first glance, but it has proven to be smooth and reliable. There is no slop in the pivot points, and the weight loads evenly through the arc. For a plate-loaded machine at this price, the overall construction quality lands solidly above average.

Setup & Installation

Assembly was easier than the machine’s complexity suggested it would be. The parts are all unique shapes, so you are not staring at a pile of identical brackets trying to figure out which one goes where. Each major component has an obvious home, and the manual diagrams are clear enough that nothing required a second pass or a YouTube search.

The instructions did not try to cram the whole build onto one or two pages. Each step is laid out at a readable size with enough visual detail that the process makes sense without a lot of interpretation. That is worth saying because a lot of brands at this price point still hand you a poorly photocopied diagram and wish you luck.

The one thing to prepare for is that once it is together, you will want help moving it into its final spot. The machine is not light, and the footprint is not small. If you are building in a garage and need to position it carefully relative to other equipment, get a second person for that step as it can be awkward to move around on your own, though it is manageable with some patience.

Beyond the footprint moment, there is nothing about the setup that would trip up someone who has assembled a rack or a cable machine before. It goes together logically, and when you are done, it looks exactly like it should.

Performance

I do not treat this as a main lift. Nobody would. Most sessions I run three to four sets, working around 15 reps, and pushing those sets close to failure. With about 140 lbs on the machine at a slow and controlled tempo, hitting rep 10, 11, or 12 and feeling that deep side glute burn start to build is easy. Sometimes you load it up and wonder if it is enough weight, and then rep 12 arrives and it is very clearly enough.

The 3D motion path is the reason this machine works better than a standard flat-track abductor. On a flat-track machine, your legs swing straight out to the side and the tension curve is awkward. Your hips fight the movement at the start and the resistance drops off as your legs open. On this machine, your legs move back and out at the same time, which keeps the tension more consistent through the whole rep. It is not as smooth as a commercial cable stack, which has the advantage of a weight stack and a pulley ratio working in its favor. But for a plate-loaded home gym machine, the resistance curve is about as good as you are going to find.

One thing I genuinely like is the ability to change where you feel it by adjusting your drive. If you push hard into the foot pedals, you pull in more rear glute. If you relax your feet and let your knees do more of the work, it shifts toward a purer hip abduction feel. Both versions are productive. It is a small adjustment that gives you some control over stimulus without requiring any equipment changes.

The machine felt more than capable of handling weight above what I was using. Based on the feel at 140 lbs, I am confident it would hold up at the claimed 300 lb total capacity. The frame does not flex under load, the arms track true, and nothing shifts or creeps during a heavy set.

Versatility

This section is short because there is not much to say. The GMWD 3D hip abductor does one movement: seated hip abduction. It does not do adduction. It does not do leg extensions, calf raises, hip thrusts, or belt squats. There is no rigging it to do anything else. I tried. The machine exists to do abduction as well as possible, and that is the beginning and the end of it.

GMWD does sell a separate unit that combines abductor and adductor movements in one machine and one footprint. If you want both movement patterns covered and you only have budget or space for one piece, that combo machine is worth looking at before buying this one.

The only thing that edges this toward versatility credit is the foot-drive adjustment described in the Performance section. By changing how you push into the pedals, you can shift the emphasis between the side glutes and the rear glutes to a meaningful degree. Within the context of the one thing this machine does, there is some room to vary the stimulus. That is it.

If you are hoping this machine earns its square footage by doubling as anything else, it will not. Go in with clear eyes.

Value

The regular price on this machine is around $900. It goes on sale regularly and you will often find it in the $600 to $700 range. The coupon code from Iron Clinic saves additional money on top of whatever sale pricing is active.

At $900, the value math only works if you are the right buyer. You are paying for a specifically engineered motion path, a solid build, and a machine that will likely outlast your home gym in its current form. That is a fair exchange if abduction training is already a regular, serious part of your program.

At $600 to $700, it starts competing directly with entry-level cable systems. A basic cable machine with ankle straps will let you do abduction, adduction, rows, pulldowns, curls, presses, and a dozen other things for similar money and usually a smaller dedicated footprint. The cable version will be more fiddly to set up for abduction work and will not feel as refined in that specific movement. But it covers far more ground. If you are still building out your core setup, the cable machine wins that budget allocation.

If your rack, bench, and cable situation is already sorted and you are adding specialty pieces, the value on this is solid, especially at sale pricing.

Who Is This For?

This machine is for someone who already has their home gym foundation built and is adding to it deliberately. You have a rack, a bench, a cable setup. You train legs seriously and your abductor work has been inconsistent, not because you do not care, but because doing it on cables takes setup time and never quite feels like a real working set.

If that is you and you have the floor space to give this machine a permanent home without shuffling everything else around, it fits. It is also worth considering for anyone training for physique goals where glute medius development is a specific target.

If you are still building your core setup, skip this for now. Come back when the fundamentals are covered.

Final Verdict

After three months of regular use, the GMWD 3D hip abductor lands where I expected it to land after the first few weeks: it is a well-built, purpose-built machine that does exactly what it claims.

The 3D motion path is a real improvement over a flat-track abductor. The ergonomics are comfortable and well thought out. The build quality has held up without any issues. It turned abduction training from something I did occasionally into something that is on the schedule every leg day, and that is the clearest sign I can give that the machine works.

The case against it is also real. It is big. It does one thing. There are more versatile ways to spend $700 to $900 in your home gym if you are not yet fully equipped. Those are legitimate reasons to pass on it depending on where you are.

If the space question is already settled and your lower body training is a priority, this is one of the best home gym abduction options at this price point. I would buy it again.
